GWAS real

This use case describes application of the scripts/gwas/gwas.py script to perform GWAS in MoBa, on height and major depression phenotypes.

Input files:

  • moba.pheno.dict - dictionary file. Corresponding moba.pheno file is not included as it contains individual-level information

  • moba.hm3.withoutFID.[bed/bim/fam] - individual-level genotypes in plink format, constrained to HapMap3 SNPs, with N=86890 individuals and M=787125 markers; this is only used for regenie analysis. To constrain imputed data down to HapMap3 SNPs one can use $PLINK --bfile <imputed> --extract <REF>/ldsc/w_hm3.justrs --make-bed --out <out> command.

  • 98k-ec-eur-fin-batch-basic-qc-withoutFID.[bed/bim/fam] - full genotypes without constraining to HapMap3 SNPs, with exacly the same set of individuals, and M=5003746 markers

  • moba.bed.argsfile and moba.bgen.argsfile - file for the gwas.py --argsfile argument, containing pointers to hard calles (in plink format) and dosages (in bgen format):

    # moba.bed.argsfile
--pheno-file moba.pheno
--geno-fit-file moba.hm3.withoutFID
--geno-file /cluster/projects/p697/genotype/MoBa_98k_post-imputationQC/98k-ec-eur-fin-batch-basic-qc-withoutFID
--fam moba.hm3.withoutFID.fam
--singularity-bind "$COMORMENT/containers/reference:/REF:ro,/cluster/projects/p697:/cluster/projects/p697"
--covar PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8 PC9 PC10 genotyping_batch YOB Sex
--variance-standardize

Now GWAS analysis can be triggered as follows:

mkdir out
export PYTHON="apptainer exec --home $PWD:/home $SIF/python3.sif python"

$PYTHON gwas.py gwas --argsfile moba.bed.argsfile --pheno height --analysis plink2 figures --out out/run1_plink2 | bash
$PYTHON gwas.py gwas --argsfile moba.bed.argsfile --pheno height --analysis regenie figures  --out out/run2_regenie | bash
$PYTHON gwas.py gwas --argsfile moba.bed.argsfile --pheno AnyF32 AnyF33 AnyFdep --analysis plink2 figures  --out out/run3_plink2 | bash
$PYTHON gwas.py gwas --argsfile moba.bed.argsfile --pheno AnyF32 AnyF33 AnyFdep --analysis regenie figures --out out/run4_regenie | bash

$PYTHON gwas.py gwas --argsfile moba.bgen.argsfile --pheno height --analysis plink2  figures --out out/run5_plink2 | bash
$PYTHON gwas.py gwas --argsfile moba.bgen.argsfile --pheno height --analysis regenie figures --out out/run6_regenie | bash
$PYTHON gwas.py gwas --argsfile moba.bgen.argsfile --pheno AnyF32 AnyF33 AnyFdep --analysis plink2 figures --out out/run7_plink2 | bash
$PYTHON gwas.py gwas --argsfile moba.bgen.argsfile --pheno AnyF32 AnyF33 AnyFdep --analysis regenie figures --out out/run8_regenie | bash

Resulting files (summary statistics):

run1_plink2_height.gz,
run2_regenie_height.gz
run3_plink2_AnyF32.gz, run3_plink2_AnyF33.gz, run3_plink2_AnyFdep.gz
run4_regenie_AnyF32.gz, run4_regenie_AnyF33.gz, run4_regenie_AnyFdep.gz
run5_plink2_height.gz,
run6_regenie_height.gz
run7_plink2_AnyF32.gz, run7_plink2_AnyF33.gz, run7_plink2_AnyFdep.gz
run8_regenie_AnyF32.gz, run8_regenie_AnyF33.gz, run8_regenie_AnyFdep.gz

Few notes:

  • gwas.py gwas prints a lot of informational messages to standard error, but when it comes to standard output, it only the sbatch commands that needs to be executed. Therefore, by piping it’s output | bash we immediately submit the jobs to the cluster

  • Custom --singularity-bind command is needed because some of the input files (namely 98k-ec-eur-fin-batch-basic-qc-withoutFID.[bed/bim/fam]) are located outside of the current folder. Also note that even if you create symbolic links to the current folder, it’s still important to map folders containing the actual data files into container, otherwise symbolic links won’t work

  • --fam argument explicitly pointing to moba.hm3.withoutFID.fam is optional, but it clarify which individuals are contained in genetic data when for example --geno-file is pointing to a .bgen rather than plink’s .bed/.bim/.fam fileset. Note that gwas.py need to know what individuals are available in the genotype files, to match them with --pheno-file argument. As of now gwas.pycan’t read .sample file, and require a .fam to extract the list of individuals. If neither --geno-fit-file nor --geno-file arguments point to a .bed file, the gwas.py will require --fam file.

After all jobs are executed the following commands allow to make QQ plots and manhattan plots:

ls out/*gz | parallel -j16 $PYTHON gwas.py qq --sumstats {} --out {}.qq.png
ls out/*gz | parallel -j16 $PYTHON gwas.py manh --sumstats {} --out {}.manh.png

Also, I’ve combined QQ plots using combine_figures.py script. Some resulting figures:

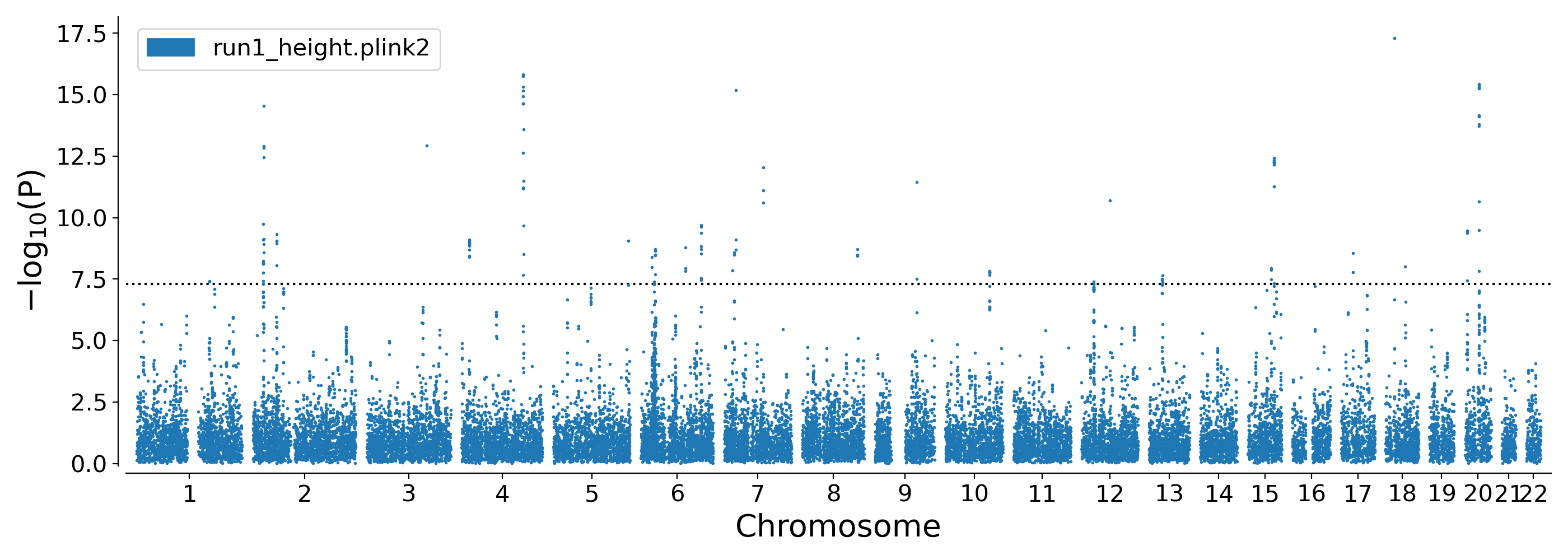

  • Manhattan plot for height GWAS: run1_height.plink2.gz.manh.png

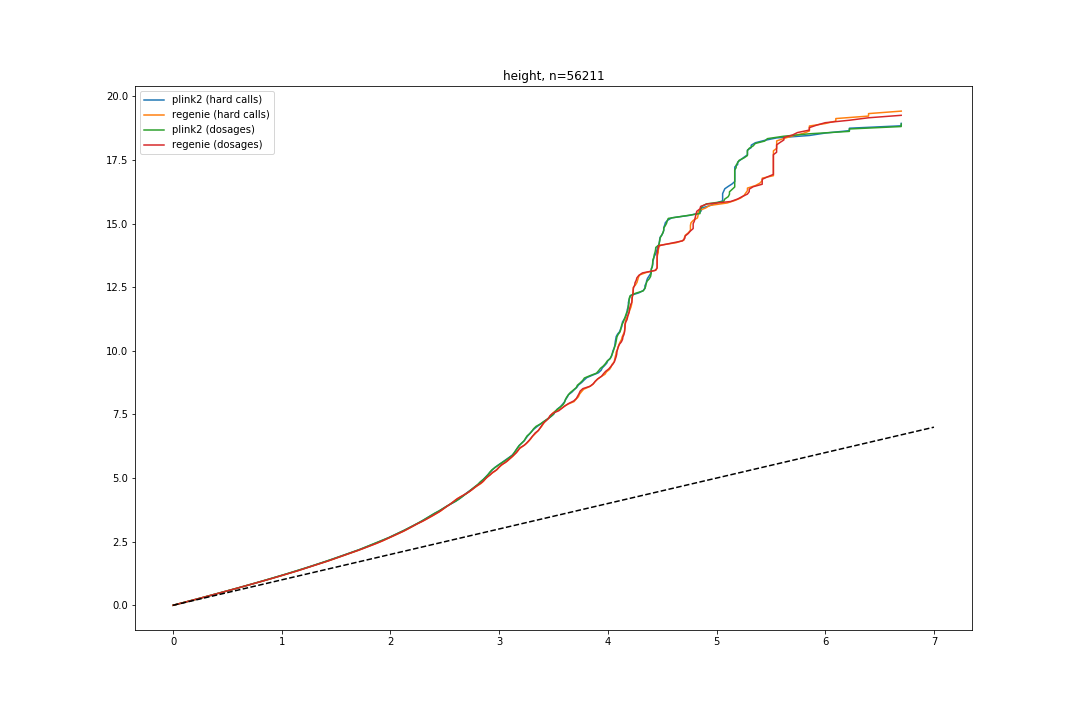

  • Combined QQ plot for height GWAS: height.qq.png

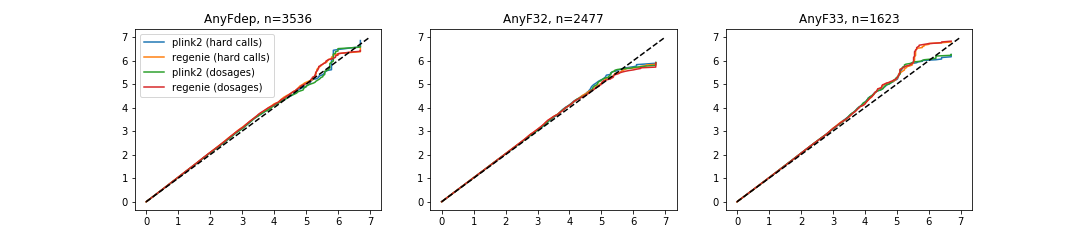

  • Combined QQ plot for depression GWAS: dep.qq.png
